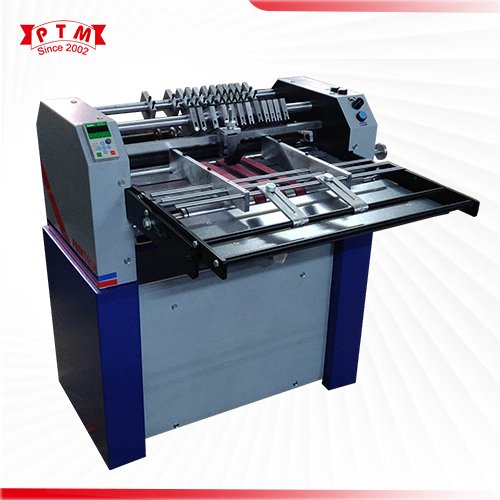

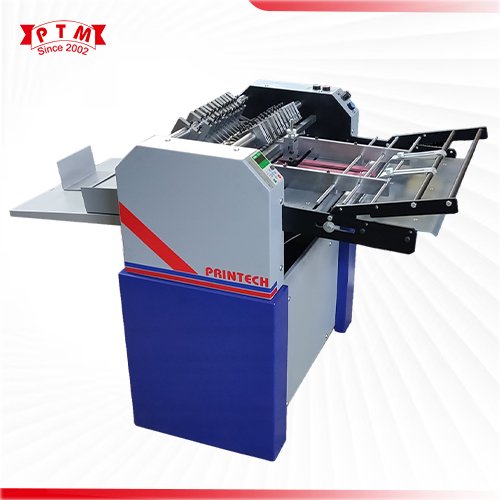

Automatic Friction Feeder (Double Unit)
Upgrade your production line with the efficiency and precision of our Automatic Friction Feeder Double Unit. Designed for high-speed and accurate feeding of flat products such as paper, cardboard, envelopes, and similar items, this state-of-the-art machine ensures seamless operation and minimal downtime.
Features
- Simple Operating Training gives Mass production.
- Designed to Portable and Compact.
- Suitable for Micro perforation, Creasing & Sticker Half Cutting.
- Friction Feeding for all kinds of Papers & Boards in any GSM Can be adjusted according to stock thickness.
- Rotary cutters can be adjusted invidual and precisly.
- Provided Micro Adjustment side Lay.
- Max. Paper Size 18" x 23" & Min. 6" x 6"
- Low Power Consumption.
- Counting Option Available.
Technical Sepcification
| Model | ACD-23 | ACD-27 | ACD-32 |
| Machine Sizes | 23" x 23" Inches | 27" x 27" Inches | 30" x 30" Inches |
| Dimension | L54" x W36" x H42" | L54" x W40" x H42" | L54" x W45" x H42" |
| No. of Cutter | 20 Nos | 20 Nos | 20 Nos |
| Minimum Gap | 8 mm | 8 mm | 8 mm |
| Minimum GSM | 45 GSM | 45 GSM | 45 GSM |
| Maximum GSM | 400 GSM | 400 GSM | 400 GSM |
| Power | 1 HP / 1ø / 50 Hz | 1 HP / 1ø / 50 Hz | 1 HP / 1ø / 50 Hz |
| Speed | Variable Speed | Variable Speed | Variable Speed |
Your Comprehensive Source for Printing Allied Machinery Needs.
